| Parts
List |
|
|
Hot Dip
Galvanized Kits:
| The HDG
Kits includes the following: |
| Two 90
degree elbows with PVC pipe sleeves |
| Two HDG
Steel extension plates |
| * Optional
Parts: Backing plate for HDG Kit recommended for
Steel or Aluminum fixed docks. |
|
|

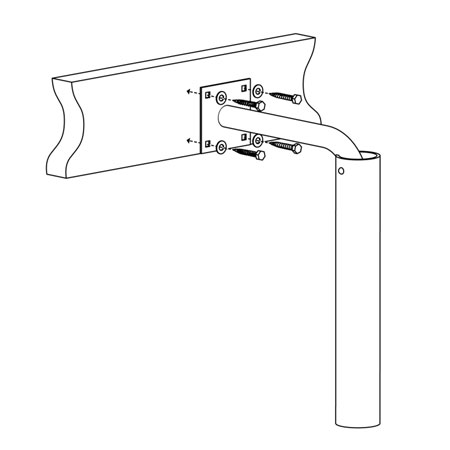

HDG
Attachment Kit without extension plate.
Recommended use when floating dock is set high from the
water line. |

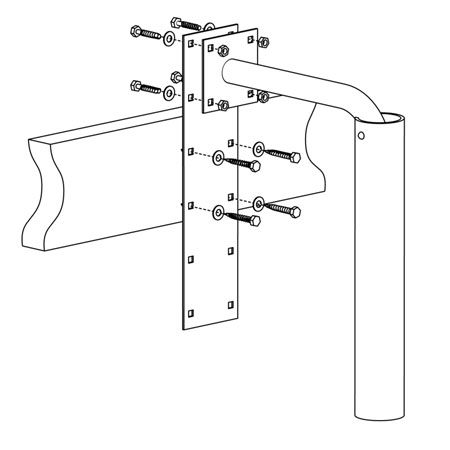

HDG Attachment
Kit with extension plate. An extension plate is needed
when the bottom HDG Kit is less then 12 inches from the
water line |
 |
 |
| Recommended
hardware includes: four 1/2 lag screws and four 1/2
washers that are Hot Dipped Galvanized |
Recommended hardware includes: four 1/2 lag screws and eight 1/2
washers. Also include 4 carriage bolts with
lock nuts. All hardware needs to be Hot Dipped
Galvanized |
