| Fixed
Dock Installation Diagram |

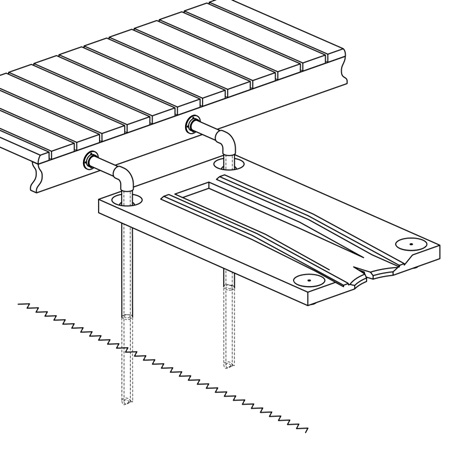

| Front mount
fixed dock Installation |
 |
| Use standard
schedule 40 PVC pipe and run pipe into lake or sea bottom of
at least 2 feet. For rock or clay areas use HDG Pipe and
cover with PVC pipe. Some applications may require
concrete pour, please consult with your Jet-port dealer for
any questions. |
| Side mount
fixed dock Installation with 4" External Pipe Holder Kit |
 |
| * Socket Wrench should
fit 3/8 hex Bolt. Run pipe through Pipe Holder kit into lake or sea bottom of
at least 2 feet. For rock or clay areas use HDG Pipe and
cover with PVC pipe. Some applications may require
concrete pour, please consult with your Jet-port dealer for
any questions. |
